Yancon Lunan Chemial Fertilizer Plant
Project Content
Project：2014year，auto loader device project
Materials：POM
System Features

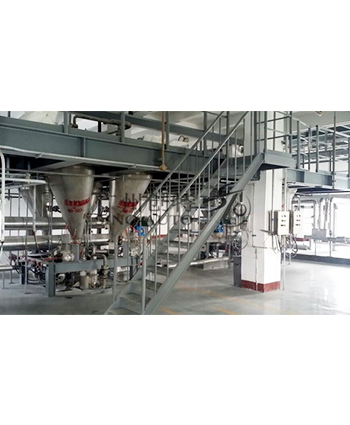

● 4 sets of artificial dust-free unloading station
● 1 waste bag collection station; 8 stainless moving hoppers
● 4 2t full closed platform lifts, lifting height:24m
● 3 sets of vacuum loader(POM particles recycling about 3mm), loading quantity:1t / h
● 1 moving dust-free small bag dumping station
● 1 movable 500kg bag dumping station
Project Review

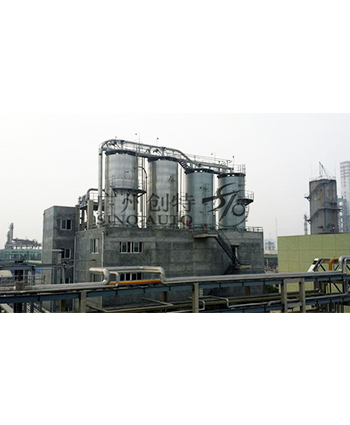

2011year，40 kt/a POM powder and pellets conveying system
System feature:
? 3.5t/h POM pellets dense phase conveying line
? 15t/h POM powder N2 closed loop conveying line
? 15t/h POM powder tube chain conveying line; 3t/h loss-in-weigh feeder
? 30m3 SS304 material blending silo
? 135m3 finished products blending and packing silo
? Feeding accuracy:0.5%
System feature:
? 3.5t/h POM pellets dense phase conveying line
? 15t/h POM powder N2 closed loop conveying line
? 15t/h POM powder tube chain conveying line; 3t/h loss-in-weigh feeder
? 30m3 SS304 material blending silo
? 135m3 finished products blending and packing silo
? Feeding accuracy:0.5%
